Hospital Bed

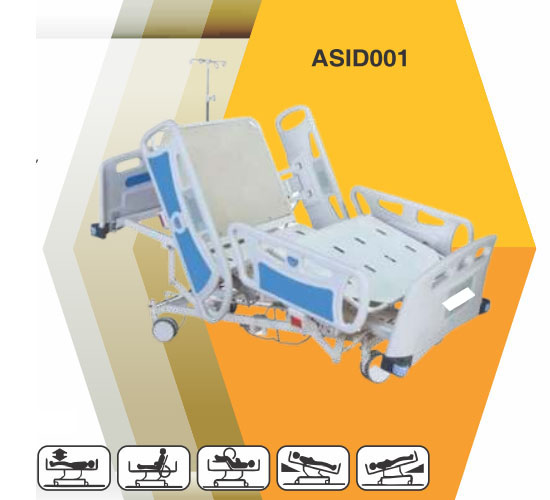

ICU Bed Electric Supreme
Features
- Made up of CRCA tube and CRCA Sheet.
- Available with four section 40 density foam mattress
- Detachable/ Mounting rod polymer moulded head and foot panel
- Positions: Back rest, knee rest, trendelenburg/reverse trendelenburg, high — low, cardiac chair position and one touch zero level (CPR) operated by engraved nurse control panels on both panel
- Provided with 4 sectional polymer moulded safety side rails with separate angle indicators.
- Corner PU buffers absorb impact and reduce damage in handling.
- Provided with heavy duty saline stand with provision for fixing it at all four locations.
- Castors of 1251150 mm dia. with diagonally locking mechanism
- Dual side manual CPR
- Frame size (approx): 2030L X 1060 W X 450-750 H
- Back rest tilt : 0-75 degree
- Knee rest tilt : 0-35 degree
- Trendelenburg : 0-12 degree
- Reverse trendelenburg : 0-12 degree
- The complete metal components are pre treated and epoxy powder coated

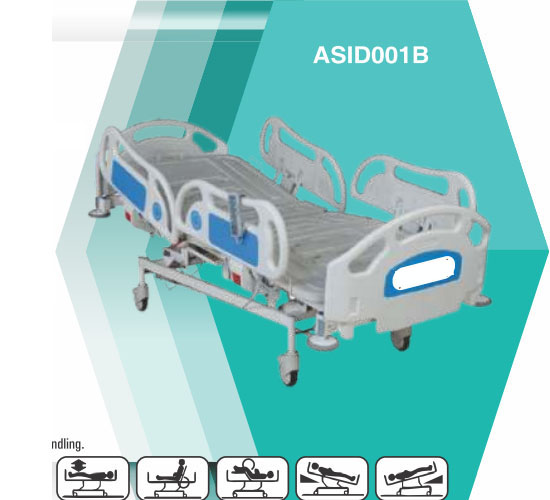

ICU Bed Electric Supreme Deluxe
Features
- Made up of CRCA tube and CRCA Sheet.
- Available with four section 40 density foam mattress
- Castors of 125/150 mm dia. With diagonally locking mechanism.
- Position: Back rest, knee rest, trendelenburg 1 reverse trendelenburg, high — low, cardiac chair position and one touch zero level (CPR) position operated by separate patient control and nurse control panel.
- Detachable/ Mounting rod polymer moulded head and foot panel
- Provided with 4 sectional polymer moulded safety side rails with separate angle indicators.
- Corner PU buffers absorb impact and reduce damage in handling.
- Provided with heavy duty saline stand with provision for fixing it all four locations.
- Dual side manual CPR
- Frame size (approx): 20301 x 1060 w x 550-750 h
- Back rest tilt : 0.75 degree
- Knee rest tilt : 0.35 degree
- Trendelenburg : 0-12 degree
- Reverse trendelenburg : 0-12 degree
- The complete metal components are 7

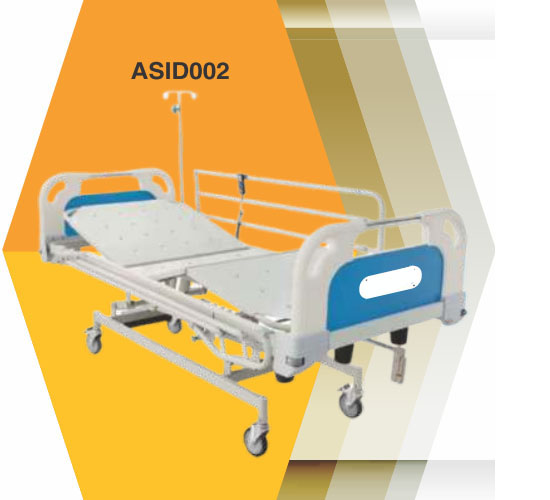

ICU Bed Electric Deluxe
Features
- Made up of CRCA tube and CRCA Sheet.
- Available with four section 40 density foam mattress
- Castors of 1251150 mm dia. With diagonally locking mechanism.
- Position: Back rest, knee rest, trendelenburg I reverse trendelenburg, high — low, cardiac chair position and one touch zero level (CPR) position operated by separate patient control and nurse control panel.
- Detachable/ Mounting rod polymer moulded head and foot panel
- Saline stand provision on four locations.
- Split type 4 section polymer moulded safety side rails with separate angle indicator
- The complete metal components are pre treated and epoxy powder coated.
- Frame size (Approx): 2030 L * 900 W * 550 —750 H
- Back rest tilt: 0 - 75 degree
- Knee rest tilt: 0 - 35 degree
- Tredelenburg: 0 - 12 degree
- Reverse Tredelenburg: 0. 12 degree
- Corner PU buffers absorb impact and reduce damage in handling.
ICU Bed Electric Three Function
Features
- Made up of CRCA tube and CRCA Sheet.
- Available with four section 40 density foam mattress
- ABS head and foot bows are locked and provide a soothing look.
- Corner PU buffers absorb impact and reduce damage in handling.
- Saline stand provision on four locations.
- Castors of 125mm dia. With diagonal locking are provided for mobility with control.
- The complete metal components are pre treated and epoxy powder coated.
- Back rest, Knee rest, High - Low Positions operated by hand held remote control system.
- Frame size (Approx): 2030 L* 900 W * 550 — 750 Fl
- Back rest tilt: 0 - 75 degree
- Knee rest tilt: 0 - 35 degree
ICU Bed Mechanical Supreme
Features
- Mattress area divided into 4 sections made up of CRCA Sheet.
- Detachable ABS head and foot bows provide a soothing look.
- 4 pieces individual ABS side rails with angle indicator
- Corner PU buffers absorb impact and reduce damage in handling.
- Saline stand provision on four locations.
- Castors of 125mm dia. With diagonal locking are provided for mobility with control.
- The complete metal components are pre treated and epoxy powder coated.
- Back rest, Knee rest, Trendelenburg/Reverse Trendelenburg, High —Low Positions maneuverable from foot-end by 4 separate crank mechanisms.
- Frame size (Approx): 2030 L * 900 W * 600 —800 H
- Back rest tilt: 0.75 degree
- Knee rest tilt: 0.35 degree
- Trendlenburg: 0 - 8 degree
- Reverse Trendlenburg: 0 - 8 degree
ICU Bed Mechanical Deluxe
Features
- Steel structure with Mattress area divided into 4 sections provides for 5 different position adjustments.
- Detachable SS framed head and foot bows with laminated panels provide ease of access and a aesthetic look.
- SSIMS Collapsible side railing.
- Corner rubber I PU buffers absorb impact and reduce damage in handling.
- Saline stand provision on four locations.
- Castors of 125mm dia. With diagonal locking are provided for mobility with control.
- The complete metal components are pre treated and epoxy powder coated.
- Positions maneuverable from foot-end by 4 separate crank mechanisms.
- Frame size: 2060 L * 900 W * 600 — 800 H
- Back rest tilt: 0.75 degree
- Knee rest tilt: 0.35 degree
- Trendlenburg: 0 - 8 degree
- Reverse Trendlenburg: 0 - 8 degree

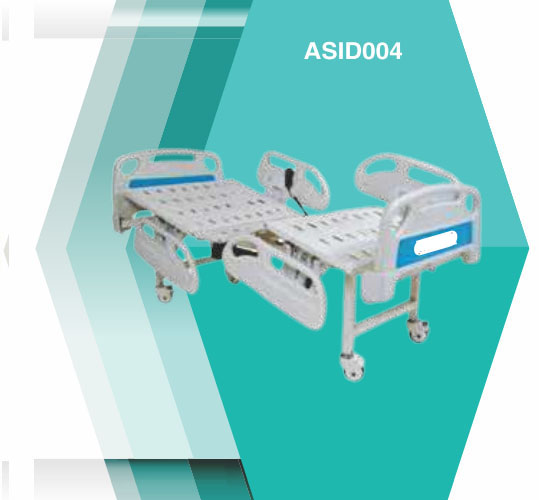

Fowler Bed Electric
Features
- Perforated CRC Sheet top in four sections
- Backrest, Kneerest Positions obtained by electric actuator operator by Hand Remote System ABS Moulded Head & Foot Bows ABS Moulded Safety side railings
- Telescopic I.V. Rod with 4 locations
- Bed Mounted on 100m Deluxe Castors, two with brakes Pre Treated and Epoxy powder Coated.
- Frame work made of rectangular M.S. tubes
- Overall approx Size: 2030mm x 900mm x 600 mm

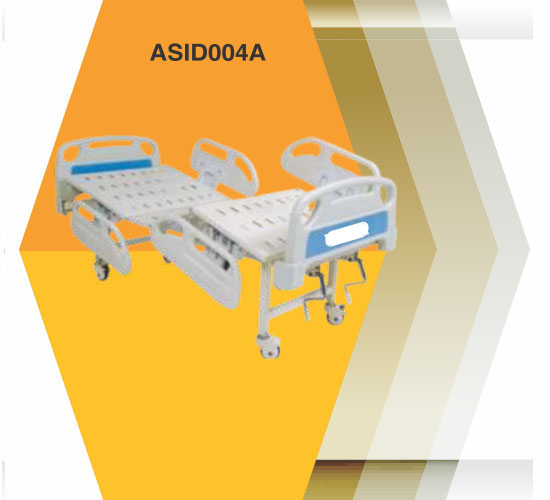

Fowler Bed Mechanical
Features
- Mattress area divided into 4 sections made up of CRCA Sheet, mounted on 100 mm castors two with brake.
- Detachable ABS head and foot bows with 4 pieces individual ABS side rails. Head & foot rest adjusted by individual crank.
- Saline stand provision on four locations.
- The complete metal components are pre treated and epoxy powder coated.
- Frame size (Approx): 2030 L * 900 W * 600H

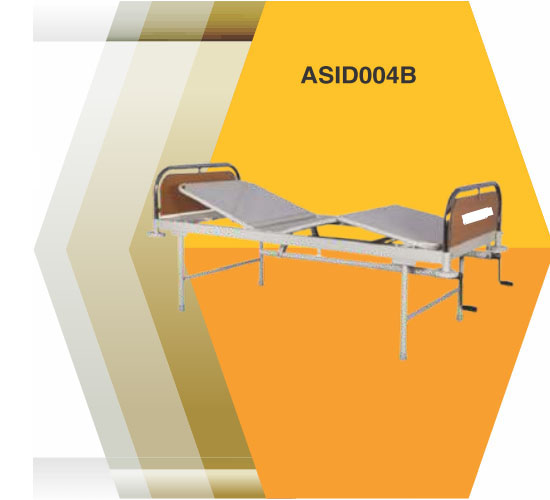

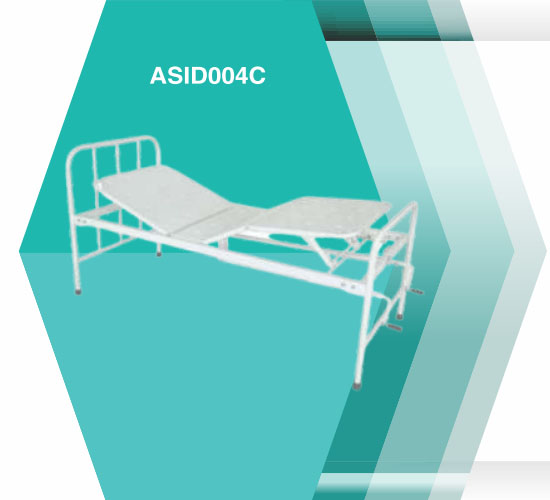

Fowler Bed Standard
Features
- Mattress area divided into 4 sections.
- Head and foot bows uneven in height with vertical tube supports.
- Saline stand provision on four locations.
- The complete metal components are pre treated and epoxy powder coated.
- 2 separate crank mechanisms for Back rest and Knee rest respectively.
- Back rest tilt: 0 - 75 degree
- Knee rest tilt: 0 - 35 degree
Fowler Bed Mechanical
Features
- Mattress area divided into 4 sections made up of CRCA Sheet, mounted on 100 mm castors two with brake.
- Detachable ABS head and foot bows with 4 pieces individual ABS side rails. Head & foot rest adjusted by individual crank.
- Saline stand provision on four locations.
- The complete metal components are pre treated and epoxy powder coated.
- Frame size (Approx): 2030 L * 900 W * 600H

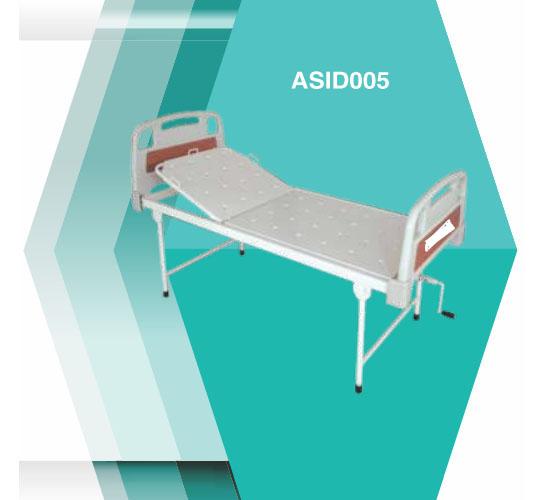

Semi Fowler Bed
Features
- Mattress area divided into 2 sections.
- Saline stand provision on four locations.
- The complete metal components are pre treated and epoxy powder coated.
- Crank mechanism for Back rest.
- Frame size: 2030 L * 900 W * 600H
- Back rest tilt: 75 degree
Semi Fowler Bed Deluxe
Features
- Mattress area divided into 2 sections.
- Detachable SS framed head and foot bows with laminated panels and back rest adjusted by crank mechanism
- Saline stand provision on four locations.
- The complete metal components are pre treated and epoxy powder coated.
- Frame size: 2030 L * 900 W * 600H
- Back rest tilt: 75 degree

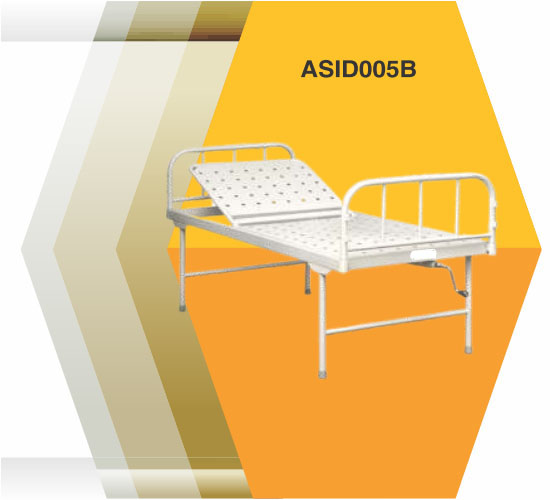

Semi Fowler Bed Standard
Features
- Mattress area divided into 2 sections.
- Head and foot bows uneven in height with vertical tube supports.
- Saline stand provision on four locations.
- The complete metal components are pre treated and epoxy powder coated.
- Crank mechanism for Back rest adjustment.
- Frame size: 2030 L * 900 W * 600H
- Back rest tilt: 75 degree

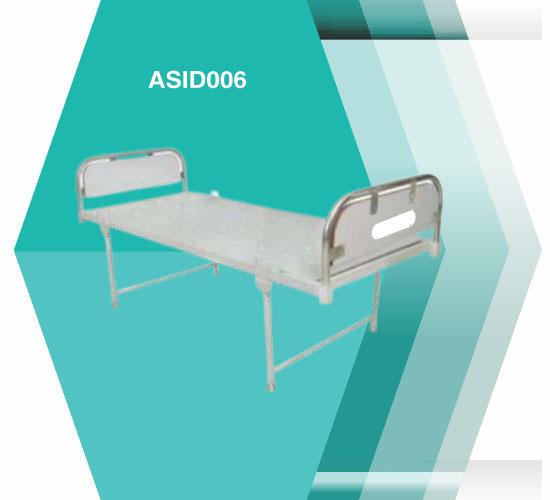

Plain Ward Bed Deluxe
Features
- Frame made of rectangular CRCA pipes.
- Bed top made of CRCA perforated sheet.
- SS frame head and foot bows with laminated panels.
- Provision for fixing IV/Saline Stand.
- The complete metal components are pre treated and epoxy powder coated.
- Frame size: 2030 L * 900 W * 600H

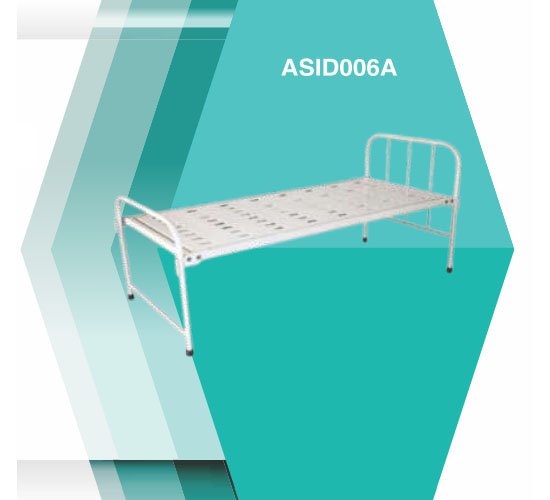

Plain Ward Bed Standard
Features
- Frame made of rectangular CRCA pipes.
- Bed top made of CRCA perforated sheet.
- Head and foot bows uneven in height with vertical tube supports provided with mattress guard.
- Provision for fixing IVISaline Stand.
- The complete metal components are pre treated and epoxy powder coated.
- Frame size: 2030 L * 900 W * 600H
Attendant Bed
Features
- Frame made of rectangular CRCA pipes.
- Bed top made of CRCA perforated sheet.
- Bed is mounted on PVC Stumps.
- The complete metal components are pre treated and epoxy powder coated.
- Frame size: 1870 L * 600 W * 450H
Attendant Bed cum Chair
Features
- Frame is made up of CRCA tubular pipe mounted on PVC stumps.
- Padded with good quality mattress.
- Metal body is pretreated and epoxy powder coated.
- Dimension is 1900 * 620 * 580 mm.
Pediatric Bed
Features
- Frame made of CRCA rectangular tubes.
- Bed top made of CRCA perforated sheet.
- Head and foot bows made of CRCA pipes with vertical tube supports.
- Drop downlswing down side railing made of CRCA pipes
- Frame size: 1370 L * 760 W * 600H Approx.

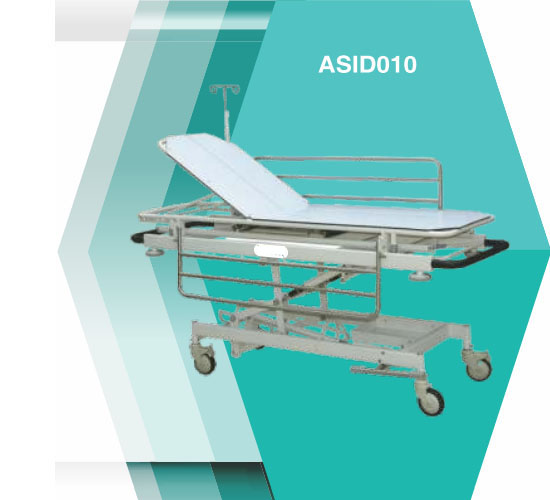

Emergency Recovery Trolley
Features
- Frame made of rectangular CRCA pipes with SS swing-down railing and Removable radiolucent top.
- 2 section top with ratchet mechanism for back rest.
- Trendlenburg I Reverse Trendlenburg position maneuverable using pneumatic pump.
- Castors of 125mm dia. With diagonal locking provided for mobility with control.
- Oxygen cylinder holder and SS IV stand.
- The complete metal components are pre treated and epoxy powder coated.
- Frame size: 2100 L * 560 W * 650-950mm H
- Also available in complete SS
- Also available in with High-Low manoeuvre via crank mechanism
Patient Trolly Deluxe
Features
- Removable with flexible height
- Frame is made of CRCA Tube
- Trolly mounted over 150mm caster of ease of movement.
- Provision of saline stand
- Provide with swing door railing.
- Provide with cylinder cage.
- Dimesion Approx 2100 L * 560 W * 8100H mm.
- Also available in complete stainless steel

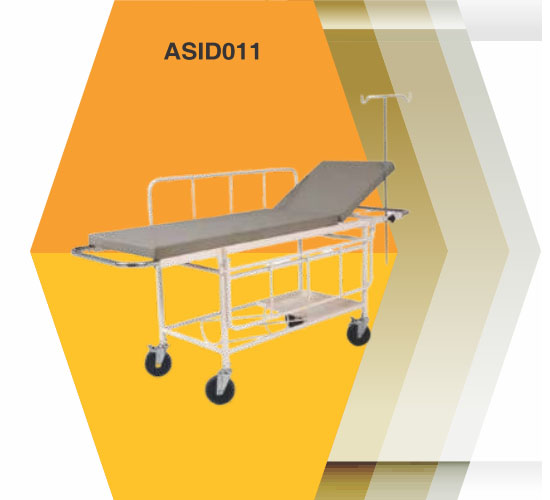

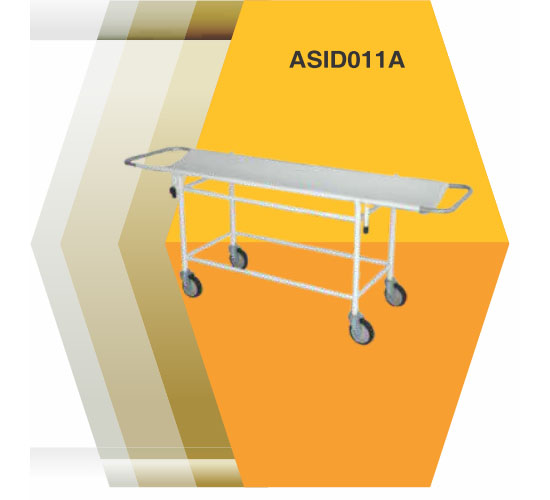

Stretcher On Trolley-Standard
Features
- Removable with Fixed Height
- Frame is made of CRCA tube.
- Trolley mounted over 150mm caster for ease of movement.
- Provision of saline stand.
- Dimension (Approx): 2100 L*560 W*810 H (mm)
- Note: Optional mattress
- Also available in complete Stainless steel.
Obstetrics I Labour Table Telescopic
Features
- Three sections top made up of SS.
- Leg section sliding completely under the main section.
- Base frame made up of CRCA tubes.
- Trendlenburg's position achieved by pneumatic pump.
- Back rest adjustable with ratchet mechanism.
- Lithotomy crutchesiLithotomy rods with straps.
- Provided with suitable mattress.
- The complete metal components are pre treated and epoxy powder coated.
- Dimension [Approx.]:1830 L x 680 W x 760 H mm.

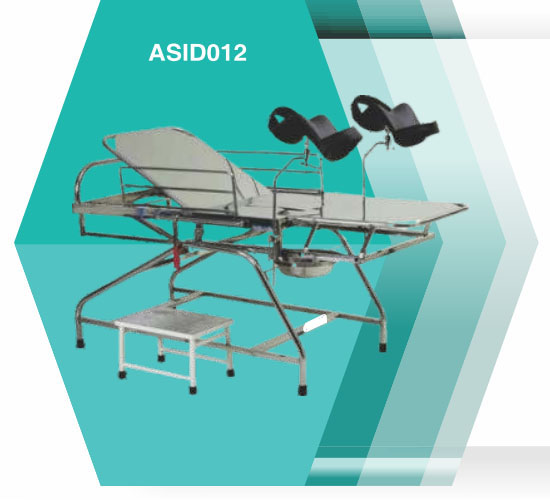

Obstetrics Labour Table - Deluxe
Features
- Frame made of CRCA pipes/sheets with adjustable perineal cut.
- Three sectional top made of Stainless Steel fixed on trolley base mounted on 125 mm castors
- Leg section sliding completely under the main section.
- Tendelenburg's position can be achieved by using pneumatic pump.
- Waste collection tray is positioned below the perineal cut.
- Back rest adjustable with ratchet mechanism.
- Height can be adjusted by hydraulic puinp.
- Hand grips, Lithotomy crutches and mattress
- The complete metal component is pre treated and epoxy powder coated.
- Dimension [Approx]:1830 L x 680 W x 760 H mm.
Examination Couch Deluxe
Features
- CRCA Sheet Construction
- Two Section top with Molded matress
- Backrest movement on ratchest mechanism
- Five drawer different size to accommodate differnet item and one cabinet.
- BP. appratus tray leveler at base
- Pre treated and power coated Approx dimension 1880L*610W*810H mm

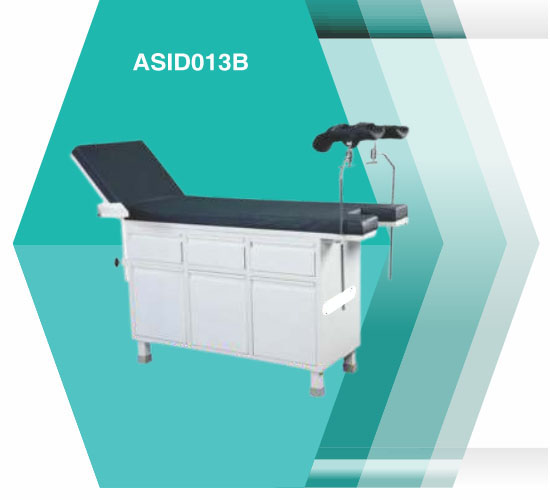

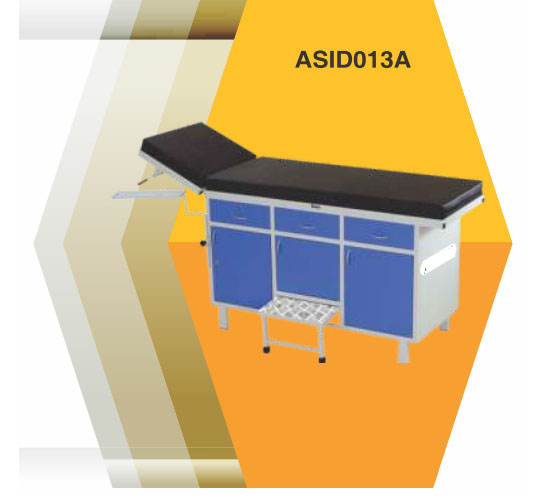

Examination Couch Gynae
Features
- Made of CRCA sheets.
- Back rest adjustable with pneumatic pump.
- Padded with foam top in high quality washable Rexe
- Provided with three drawers and three utility cabinet
- Provided with foldable BP apparatus tray on the side
- Provided with inbuilt foot step.
- Provision of saline stand.
- The complete metal component is pre treated and epoxy powder coated.
- Dimension is 1870 (L►* 560 (W) *810 (H) mm

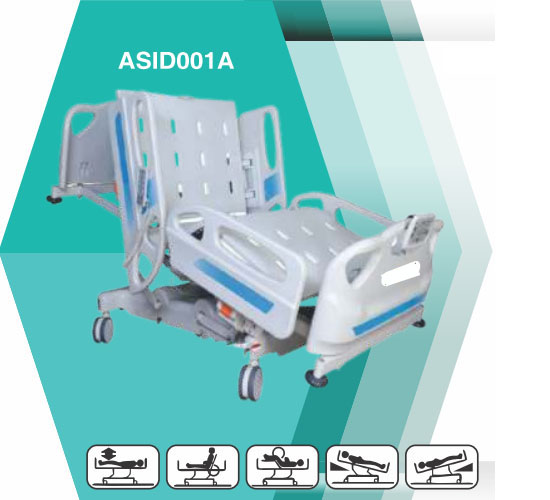

LDR Bed Electric
Features

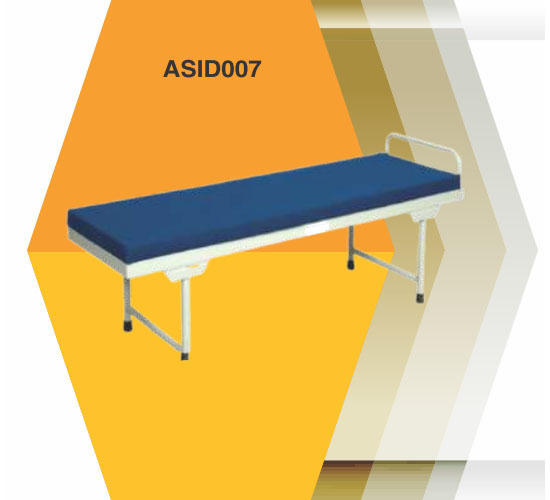

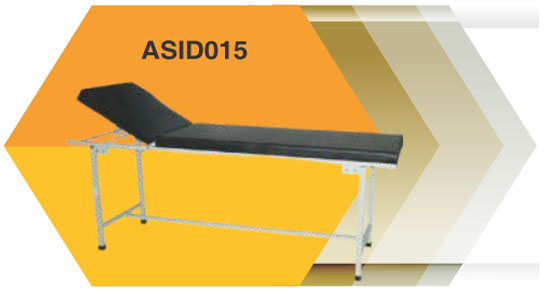

Examination Table Deluxe
Features

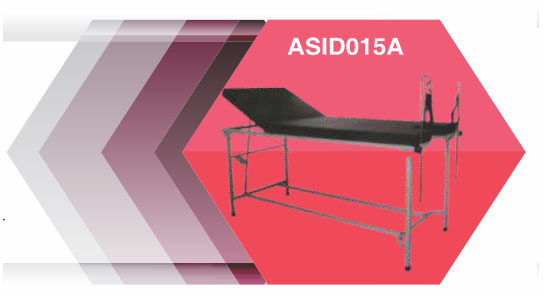

Gynae Examination Table Deluxe
Features
